Customize a NanoSSH server implementation

After building and verifying the NanoSSH server example code, the NanoSSH Server implementation may be customized and integrated into an application.

Before customizing the example code or using it as a model for another implementation, first verify that it builds and executes as expected in the intended environment; see Building NanoSSH Server Example Code.

Asynchronous NanoSSH server process

To integrate an asynchronous NanoSSH Server into an application, add calls to the application for NanoSSH Server initialization, socket and connection management, message processing, and NanoSSH Server shutdown, as shown in the src/examples/ssh_example.c example module.

In particular, the functions and tasks described below should be performed in the order shown.

  1. Add the NanoSSH Server Software

    • Incorporate the NanoSSH server software into the application development environment, ensuring the inclusion of example code that aligns closely with the intended application.

  2. Port TrustCore SDK Code

    • If no pre-configured TrustCore SDK port exists for the operating system, modify the appropriate abstraction files to adapt the code to the operating system.

  3. Specify Features for TrustCore SDK Executable

    • Determine which features, such as debugging and examples, should be included in the TrustCore SDK executable by setting the appropriate compilation flags. Initially, only a minimal set of flags should be defined to limit functionality to basic communications. After constructing a basic example application and verifying its executability in the environment (refer to step 5), repeat this step to incrementally add more features.

  4. Create Object Files and Executable

    • Proceed with the creation of object files and the executable.

  5. Verify NanoSSH Server Example Code

    • Confirm that the NanoSSH server example code operates correctly on the operating system.

  6. Iterative Feature Addition

    • Reiterate steps 3 to 5 as necessary to incrementally introduce additional features.

Asynchronous NanoSSH Server compilation flags and predefined values

The following list of NanoSSH Server compilation flags. All flags are optional.

For a complete list of compilation flags, refer to the NanoSSH API Reference.

  • __DISABLE_OPEN_SSH_AES_GCM__

  • __DISABLE_MOCANA_INIT__

  • __DISABLE_MOCANA_SSH_COMMON_NAME_CHECK__

  • __DISABLE_MOCANA_SSH_RSA_KEY_EXCHANGE__

  • __ENABLE_MOCANA_DSA__

  • __ENABLE_MOCANA_SSH_ASYNC_SERVER_API__

  • __ENABLE_MOCANA_SSH_CHANNEL_ID_DEBUG__

  • __ENABLE_MOCANA_SSH_X509V3_SIGN_SUPPORT__

  • __ENABLE_MOCANA_SSH_DSA_SUPPORT__

  • __ENABLE_MOCANA_SSH_FTP_SERVER__

  • __ENABLE_MOCANA_SSH_MAX_SESSION_TIME_LIMIT__

  • __ENABLE_MOCANA_SSH_OLD_DSA_CONVERSION__

  • __ENABLE_MOCANA_SSH_PING__

  • __ENABLE_MOCANA_SSH_PORT_FORWARDING__

  • __ENABLE_MOCANA_SSH_RSA_SUPPORT__

  • __ENABLE_MOCANA_SSH_SCP_SERVER__

  • __ENABLE_MOCANA_SSH_SENDER_RECV__

  • __ENABLE_MOCANA_SSH_SERVER__

  • __ENABLE_MOCANA_SSH_STREAM_API__

  • __ENABLE_MOCANA_SSH_X509V3_RFC_6187_SUPPORT__

  • __ENABLE_SSH_VERSION1_SUPPORT__

  • __USE_MOCANA_SSH_SERVER__

Asynchronous NanoSSH Server common functions

The following NanoSSH Server functions are used to communicate both synchronously and asynchronously with SSH clients, and are therefore applicable to the asynchronous NanoSSH Server:

  • Connection management functions:

    • SSH_getCookie

    • SSH_setCookie

    • SSH_releaseTables

    • SSH_shutdown

    • SSH_assignCertificateStore

  • Security functions:

    • SSH_convertOldKeyBlobToNew

    • SSH_compareAuthKeys

    • SSH_getInstanceFromSocket

    • SSH_getNextConnectionInstance

    • SSH_getSessionCryptoInfo

    • SSH_getSocketId

    • SSH_verifyPublicKeyFile

    • SSH_setUserPortForwardingPermissions

    • SSH_useThisCipherList

    • SSH_useThisHmacList

    • SSH_initiateReKey

    • SSH_numBytesTransmitted

  • SSH server management functions:

    • SSH_getTerminalSettingDescr

    • SSH_sshSettings

    • SSH_ioctl

  • Port Forwarding functions:

    • SSH_setUserPortForwardingPermissions

    • SSH_sendPortForwardMessage

    • SSH_sendPortForwardClose

    • SSH_ackPortFwdReceivedMessageBytes

Asynchronous functions for NanoSSH Server

The following functions are used to communicate asynchronously with SSH clients:

  • Connection management functions:

    • SSH_ASYNC_init

    • SSH_ASYNC_acceptConnection

    • SSH_ASYNC_closeConnection

    • SSH_ASYNC_startProtocolV2

  • Messaging functions:

    • SSH_ASYNC_recvMessage

    • SSH_ASYNC_ackReceivedMessageBytes

    • SSH_ASYNC_recvContinueMessage

    • SSH_ASYNC_sendMessage

    • SSH_ASYNC_sendMessagePending

Callback functions for asynchronous NanoSSH Server

NanoSSH Server callback functions should be customized for an application. Registering callbacks entails assigning custom functions to the session callback function pointers (the functions that begin with funcPtr) of the sshSettings structure.

  • General purpose callbacks:

    • funcPtrPasswordAuth

    • funcPtrPubKeyAuth

    • funcPtrKeyIntAuthReq

    • funcPtrReleaseKeyIntReq

    • funcPtrGetAuthAdvertizedMethods

    • funcPtrConnect

    • funcPtrConnection

    • funcPtrPostAccept

    • funcPtrStartTimer

  • Protocol-specific callbacks:

    • funcPtrSessionOpen

    • funcPtrPtyRequest

    • funcPtrOpenShell

    • funcPtrOpenSftp

    • funcPtrWindowChange

    • funcPtrReceivedData

    • funcPtrStdErr

    • funcPtrEof

    • funcPtrClosed

    • funcPtrBreakOp

  • Port forwarding callback functions:

    • funcPtrConnect

    • funcPortFwdReceivedData

    • funcPortFwdPtrClosed

    • funcPortFwdPtrEof

Customize a synchronous NanoSSH Server implementation

After building and verifying NanoSSH Server example code, the synchronous NanoSSH Server implementation may be customized and integrated into an application.

Before customizing the example code or using it as a model for another implementation, first verify that it builds and executes as expected in the intended environment; see Building NanoSSH Server Example Code.

Synchronous NanoSSH Server process

To integrate a synchronous NanoSSH Server into an application, add calls to the application for NanoSSH Server initialization, socket and connection management, message processing, and NanoSSH Server shutdown, as shown in the src/examples/ssh_example.c example module.

In particular, the functions and tasks described in Table 4 should be performed in the order shown. For additional synchronous NanoSSH Server process flow information, see Figure 2.

  1. Define Flags

    • Define any necessary flags for the implementation by editing the moptions.h file.

  2. Generate Keys (Optional)

    • Optionally generate public and private keys to store in the device’s persistent storage.

  3. Initialize NanoSSH Server

    • Initialize the NanoSSH Server’s session manager, internal structures, and specific settings.

  4. Configure Callbacks

    • Configure common (synchronous and asynchronous) callbacks:

      • Replace stub functions with any custom routines, modeling them after the NanoSSH example code.

      • Register the required callbacks (functions marked with an asterisk are automatically registered for synchronous use).

  5. Configure Synchronous Callbacks

    • Configure synchronous callbacks as needed.

  6. Accept TCP Socket Connection

    • Accept a TCP socket connection from the NanoSSH Server using the application’s existing methods.

  7. Establish SSH Session

    • Establish an SSH session between the device and a web browser.

  8. Negotiate NanoSSH Handshaking

    • Conduct the negotiation for NanoSSH handshaking.

  9. Process Packets

    • Continuously loop to process packets.

  10. Reclaim Resources

    • Reclaim device and NanoSSH Server resources.

  11. Shut Down NanoSSH Stack (Optional)

    • Optionally shut down the NanoSSH stack if no longer needed.

  12. Build NanoSSH-Integrated Implementation

    • Build the NanoSSH-integrated implementation.

Synchronous server compilation flags and predefined values

The full set of NanoSSH synchronous server compilation flags (the same set as for the asynchronous NanoSSH Server) is as follows. All flags are optional.

For a complete list of compilation flags, refer to the NanoSSH API Reference.

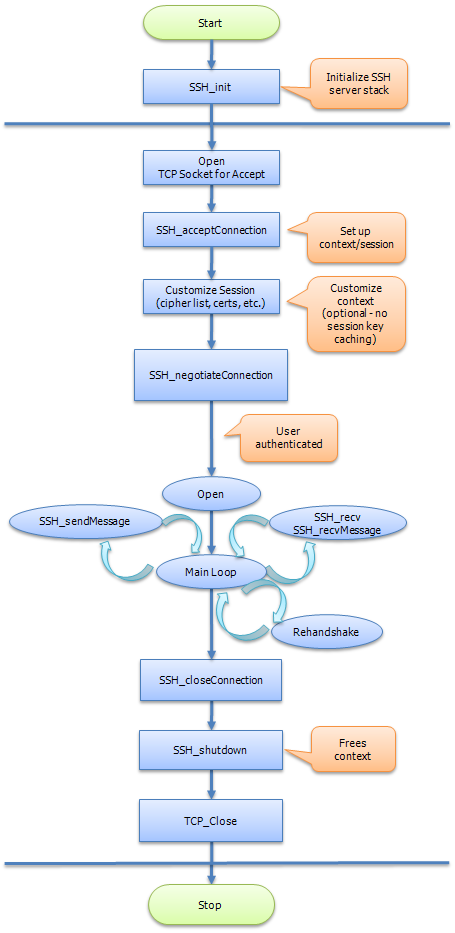

Synchronous NanoSSH Server flowchart

Below shows the NanoSSH synchronous server process flowchart. For additional information about the NanoSSH synchronous server process flow, see above.

Figure 1.

NanoSSH Synchronous Server Process Flowchart


Common Functions for Synchronous NanoSSH Server

The following NanoSSH Server functions are used to communicate both synchronously and asynchronously with SSH clients (whether NanoSSH Client or a third-party SSH client), and are therefore applicable to synchronous NanoSSH Server implementations:

  • Connection management functions:

    • SSH_getCookie

    • SSH_setCookie

    • SSH_releaseTables

    • SSH_shutdown

    • SSH_assignCertificateStore

  • Security functions:

    • SSH_convertOldKeyBlobToNew

    • SSH_compareAuthKeys

    • SSH_getInstanceFromSocket

    • SSH_getNextConnectionInstance

    • SSH_getSessionCryptoInfo

    • SSH_getSocketId

    • SSH_verifyPublicKeyFile

    • SSH_setUserPortForwardingPermissions

    • SSH_useThisCipherList

    • SSH_useThisHmacList

    • SSH_initiateReKey

    • SSH_numBytesTransmitted

  • SSH server management functions:

    • SSH_getTerminalSettingDescr

    • SSH_sshSettings

    • SSH_ioctl

  • Port forwarding functions:

    • SSH_setUserPortForwardingPermissions

    • SSH_sendPortForwardMessage

    • SSH_sendPortForwardClose

    • SSH_ackPortFwdReceivedMessageBytes

Synchronous functions for NanoSSH Server

The following functions are used to communicate synchronously with SSH clients (whether NanoSSH Client or a third-party SSH client):

  • Connection management functions:

    • SSH_acceptConnection

    • SSH_closeConnection

    • SSH_init

    • SSH_negotiateConnection

    • SSH_sendPing

  • Messaging functions:

    • SSH_recv

    • SSH_recvMessage

    • SSH_recvPending

    • SSH_sendMessage

    • SSH_sendErrMessage

  • SSH server management functions:

    • SSH_disconnectAllClients

    • SSH_startServer

    • SSH_stopServer

Callback functions for synchronous NanoSSH Server

NanoSSH Server callback functions should be customized for an application. Registering callbacks entails assigning custom functions to the session callback function pointers (the functions that begin with funcPtr) of the sshSettings structure.

  • General purpose callbacks:

    • funcPtrPasswordAuth

    • funcPtrPubKeyAuth

    • funcPtrKeyIntAuthReq

    • funcPtrReleaseKeyIntReq

    • funcPtrGetAuth Advertized Methods

    • funcPtrConnect

    • funcPtrConnection

    • funcPtrPostAccept

    • funcPtrStartTimer

  • Protocol-specific callbacks:

    • funcPtrSessionOpen

    • funcPtrPtyRequest

    • funcPtrOpenShell

    • funcPtrOpenSftp

    • funcPtrWindowChange

    • funcPtrReceivedData

    • funcPtrStdErr

    • funcPtrEof

    • funcPtrClosed

    • funcPtrBreakOp

    • funcPtrExec

    • funcPtrReplyPing

  • Port forwarding callback functions:

    • funcPtrConnect

    • funcPortFwdReceivedData

    • funcPortFwdPtrClosed

    • funcPortFwdPtrEof

Customize a NanoSSH SFTP Server implementation

The NanoSSH SFTP server enables secure file transfers. In addition, it may protect individual files and directories on systems for which there is no such mechanism, such as many embedded operating systems. If desired, subdirectories and files may inherit the closest progenitor’s (parent’s) file permissions. Files may be mapped to disk, RAM, Flash, remote storage, and more.

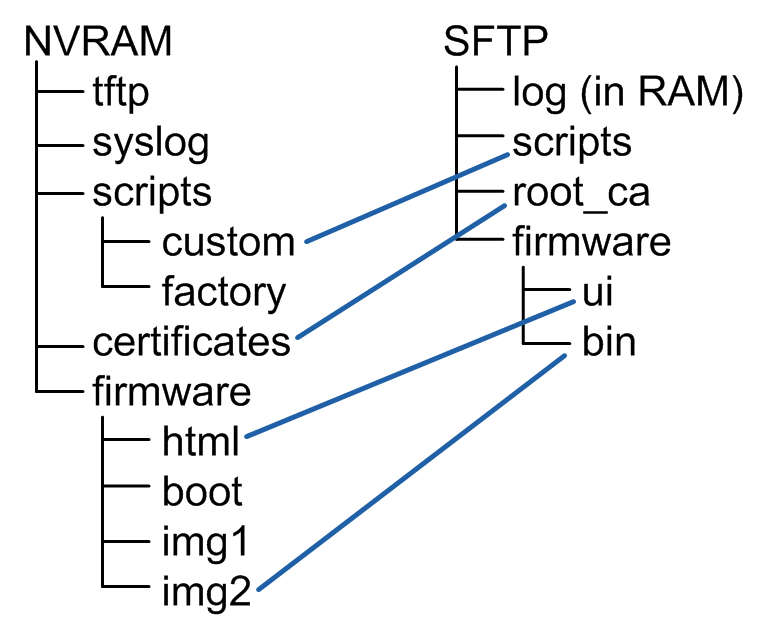

The figure below shows how a server’s virtual file system, SFTP:/, may differ from the actual file system; in this case, the NVRAM:/root directory of a Flash-based file system. The client sees four top-level directories (log, scripts, root_ca, and firmware), a subdirectory (ui, under firmware), and another subdirectory (bin, under ui). Each of these directories is mapped to a directory in the actual NVRAM file system, effectively hiding the remaining NVRAM files and directories.

Figure 2.

NanoSSH SFTP Real and Virtual File System and Relationship


NanoSSH SFTP Server process overview

NanoSSH SFTP server integration entails adding compilation flags and replacing the stub functions for file I/O with custom routines, as shown in the src/examples/sftp_example.c example module.

In particular, the tasks described below should be performed in the order shown.

  1. Define Implementation Flags

    • Define any necessary flags for the implementation by editing the moptions.h file.

  2. Enable SFTP Server

    • Enable the SFTP server functionality within the NanoSSH Server by setting the __ENABLE_MOCANA_SSH_FTP_SERVER__ flag.

  3. Write File System Routines

    • Develop file system routines tailored for the target embedded systems.

  4. Replace Stub Functions

    • Replace stub functions with any custom routines tailored for your system.

  5. Set Up Virtual Filesystem and Permissions

    • Set up the virtual filesystem and directory permissions by adding entries to the sftpFiles[] table.

    • See the implementation example in sftp_example_filesys.c in the examples directory.

  6. Rebuild NanoSSH-Integrated Implementation

    • Rebuild the NanoSSH-integrated implementation to incorporate all changes and new configurations.

Compilation flags and predefined values for NanoSSH SFTP Server

The compilation flags for the NanoSSH SFTP Server focus on enabling specific features and functionalities critical for the secure file transfer capabilities of the server.

Functions for NanoSSH SFTP Server

The following functions may be used in NanoSSH SFTP server implementations:

  • Server management settings:

    • SSH_sftpSettings

  • Security context initialization functions:

    • SSH_sftpSetMemberOfGroups

    • SSH_sftpSetHomeDirectory

  • Context state management functions (embed the context within the NanoSSH SFTP context):

    • SSH_sftpSetCookie

    • SSH_sftpGetCookie

  • File transfer functions:

    • SSH_sftpReadLocation

    • SSH_sftpReadBuffer

    • SSH_sftpReadBufferSize

    • SSH_sftpNumBytesRead

    • SSH_sftpWriteLocation

    • SSH_sftpWriteBuffer

    • SSH_sftpWriteBufferSize

Callback functions for NanoSSH SFTP Server

NanoSSH SFTP callback functions should be customized for an application. To register callbacks, assign any custom functions to the following session callback function pointers (the functions that begin with funcPtr) of the sftpSettings structure:

  • File I/O callback functions:

    • funcPtrOpenFileUpcall

    • funcPtrReadFileUpcall

    • funcPtrWriteFileUpcall

    • funcPtrCloseFileUpcall

  • Directory management and traversal callback functions:

    • funcPtrCreateDir

    • funcPtrRemoveDir

    • funcPtrOpenDirUpcall

    • funcPtrReadDirUpcall

    • funcPtrCloseDirUpcall

  • File management callback functions:

    • funcPtrGetFileStats

    • funcPtrGetOpenFileStats

    • funcPtrRemoveFile

    • funcPtrRenameFile
