Header file for the Nanocrypto RSA API. More...

Typedefs
typedef struct MRsaKeyTemplate *	MRsaKeyTemplatePtr

Functions
MOC_EXTERN MSTATUS	RSA_applyPrivateKey (MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey pPrivateKey, RNGFun rngFun, void rngFunArg, ubyte pInput, ubyte4 inputLen, ubyte ppOutput, vlong *ppVlongQueue)
	This function performs an RSA private key operation with no padding. More...

MOC_EXTERN MSTATUS	RSA_applyPublicKey (MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey pPublicKey, ubyte pInput, ubyte4 inputLen, ubyte ppOutput, vlong ppVlongQueue)
	This function performs an RSA public key operation with no padding. More...

MOC_EXTERN MSTATUS	RSA_byteStringFromKey (MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey pKey, ubyte pBuffer, ubyte4 *pRetLen)
	Convert RSA key to a string of (PKCS #1) bytes. More...

MOC_EXTERN MSTATUS	RSA_cloneKey (MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey *ppNew, const RSAKey pSrc, vlong **ppVlongQueue)
	Clone (copy) an RSA key. More...

MOC_EXTERN MSTATUS	RSA_createKey (RSAKey **pp_RetRSAKey)
	Create memory storage for an RSA key pair. More...

MOC_EXTERN MSTATUS	RSA_decrypt (MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey pKey, const ubyte cipherText, ubyte plainText, ubyte4 plainTextLen, RNGFun rngFun, void rngFunArg, vlong *ppVlongQueue)
	Decrypt ciphertext using PKCS #1. More...

MOC_EXTERN MSTATUS	RSA_encrypt (MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey pKey, const ubyte plainText, ubyte4 plainTextLen, ubyte cipherText, RNGFun rngFun, void rngFunArg, vlong **ppVlongQueue)
	Encrypt plaintext using PKCS #1. More...

MOC_EXTERN MSTATUS	RSA_equalKey (MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey pKey1, const RSAKey pKey2, byteBoolean *pResult)
	Determine whether two RSA keys are equal. More...

MOC_EXTERN MSTATUS	RSA_freeKey (RSAKey ppFreeRSAKey, vlong ppVlongQueue)
	Free (delete) an RSA key. More...

MOC_EXTERN MSTATUS	RSA_freeKeyTemplate (RSAKey *pKey, MRsaKeyTemplatePtr pTemplate)
	Free the RSA standard key template structure previouslly allocated by RSA_getKeyParametersAlloc. More...

MOC_EXTERN MSTATUS	RSA_generateKey (MOC_RSA(hwAccelDescr hwAccelCtx) randomContext pRandomContext, RSAKey p_rsaKey, ubyte4 keySize, vlong **ppVlongQueue)
	Generate RSA key pair (private and public keys). More...

MOC_EXTERN MSTATUS	RSA_getCipherTextLength (MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey pKey, sbyte4 pCipherTextLen)
	Get an RSA public key's ciphertext length. More...

MOC_EXTERN MSTATUS	RSA_getKeyParametersAlloc (MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey *pKey, MRsaKeyTemplatePtr pTemplate, ubyte keyType)
	Retrieve the following components from an RSA key as byte string buffers: More...

MOC_EXTERN MSTATUS	RSA_getPrivateExponent (MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey pRSAKey, vlong ppRetD, vlong *ppVlongQueue)

MOC_EXTERN MSTATUS	RSA_keyFromByteString (MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey *ppKey, const ubyte byteString, ubyte4 len, vlong **ppVlongQueue)
	Convert byte string to RSA key, using PKCS #1. More...

MOC_EXTERN MSTATUS	RSA_prepareKey (MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey pRSAKey, vlong *ppVlongQueue)
	Compute RSA private key. More...

MOC_EXTERN MSTATUS	RSA_setAllKeyData (MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey pKey, ubyte pPubExpo, ubyte4 pubExpoLen, const ubyte pModulus, ubyte4 modulusLen, const ubyte pPrime1, ubyte4 prime1Len, const ubyte pPrime2, ubyte4 prime2Len, vlong *ppVlongQueue)
	This is the same as RSA_setAllKeyParameters, except the public exponent is passed in as a canonical int. More...

MOC_EXTERN MSTATUS	RSA_setAllKeyParameters (MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey pKey, ubyte4 exponent, const ubyte modulus, ubyte4 modulusLen, const ubyte prime1, ubyte4 prime1Len, const ubyte prime2, ubyte4 prime2Len, vlong **ppVlongQueue)
	Set RSA public key parameters. More...

MOC_EXTERN MSTATUS	RSA_setPublicKeyData (MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey pKey, ubyte pPubExpo, ubyte4 pubExpoLen, const ubyte pModulus, ubyte4 modulusLen, vlong *ppVlongQueue)
	This is the same as RSA_setPublicKeyParameters, except the public exponent is passed in as a canonical int. More...

MOC_EXTERN MSTATUS	RSA_setPublicKeyParameters (MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey pKey, ubyte4 exponent, const ubyte modulus, ubyte4 modulusLen, vlong **ppVlongQueue)
	Set RSA public key parameters: exponent and modulus. More...

MOC_EXTERN MSTATUS	RSA_signMessage (MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey pKey, const ubyte plainText, ubyte4 plainTextLen, ubyte cipherText, vlong *ppVlongQueue)
	Generate signature for plaintext buffer, using provided RSA private key and PKCS #1. More...

MOC_EXTERN MSTATUS	RSA_verifyDigest (MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey pKey, ubyte pMsgDigest, ubyte4 digestLen, ubyte pSignature, ubyte4 sigLen, intBoolean pIsValid, vlong **ppVlongQueue)
	Verify the digest of a message. More...

MOC_EXTERN MSTATUS	RSA_verifySignature (MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey pKey, const ubyte cipherText, ubyte plainText, ubyte4 plainTextLen, vlong **ppVlongQueue)
	Verify decrypted buffer's signature. More...

Detailed Description

RSA public key encryption

Whether the following flags are defined determines which additional header files are included:

__ENABLE_MOCANA_FIPS_MODULE__
__ENABLE_MOCANA_PKCS11_CRYPTO__
__ENABLE_MOCANA_HW_SECURITY_MODULE__
__RSA_HARDWARE_ACCELERATOR__

Whether the following flags are defined determines which function declarations are enabled:

__CUSTOM_RSA_BLINDING__
__DISABLE_MOCANA_KEY_GENERATION__
__DISABLE_MOCANA_RSA_CLIENT_CODE__
__DISABLE_MOCANA_RSA_DECRYPTION__
__DISABLE_MOCANA_RSA_SIGN__
__DISABLE_MOCANA_RSA_VERIFY__
__DISABLE_MOCANA_RSA_VERIFY_CERTIFICATE__
__DISABLE_PKCS1_KEY_READ__
__ENABLE_ALL_TESTS__
__ENABLE_MOCANA_FIPS_MODULE__
__ENABLE_MOCANA_PKCS11_CRYPTO__
__ENABLE_MOCANA_VERIFY_RSA_SIGNATURE__
__MOCANA_BLIND_FACTOR_SIZE__
__RSAINT_HARDWARE__

Function Documentation

◆ RSA_applyPrivateKey()

MOC_EXTERN MSTATUS RSA_applyPrivateKey	(	MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey *	pPrivateKey,
		RNGFun	rngFun,
		void *	rngFunArg,
		ubyte *	pInput,
		ubyte4	inputLen,
		ubyte **	ppOutput,
		vlong **	ppVlongQueue
	)

If a RNGFun is provided, RSA blinding will be used. The output of this operation will always be exactly modulus length bytes.

Parameters

pPrivateKey	Pointer to the private key to be applied.
rngFun	Function pointer for generating random bytes, RSA blinding will be used if this is provided.
rngFunArg	Argument to the rngFun.
pInput	Buffer containing the input data.
inputLen	Length in bytes of the input material, must be less than the modulus length.
ppOutput	Pointer to the location that will recieve the allocated buffer with exactly modulus length bytes of processed data.
ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.

Returns: OK (0) if successful, otherwise a negative number error code from merrors.h

◆ RSA_applyPublicKey()

MOC_EXTERN MSTATUS RSA_applyPublicKey	(	MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey *	pPublicKey,
		ubyte *	pInput,
		ubyte4	inputLen,
		ubyte **	ppOutput,
		vlong **	ppVlongQueue
	)

The output of this operation will always be exactly modulus length bytes.

Parameters

pPublicKey	Pointer to the public key to be applied.
pInput	Buffer containing the input data.
inputLen	Length in bytes of the input material, must be less than the modulus length.
ppOutput	Pointer to the location that will recieve the allocated buffer with exactly modulus length bytes of processed data.
ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.

Returns: OK (0) if successful, otherwise a negative number error code from merrors.h

◆ RSA_byteStringFromKey()

MOC_EXTERN MSTATUS RSA_byteStringFromKey	(	MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey *	pKey,
		ubyte *	pBuffer,
		ubyte4 *	pRetLen
	)

This function converts an RSA key to a string of (PKCS #1) bytes.

FIPS Approved
Suite B Algorithm

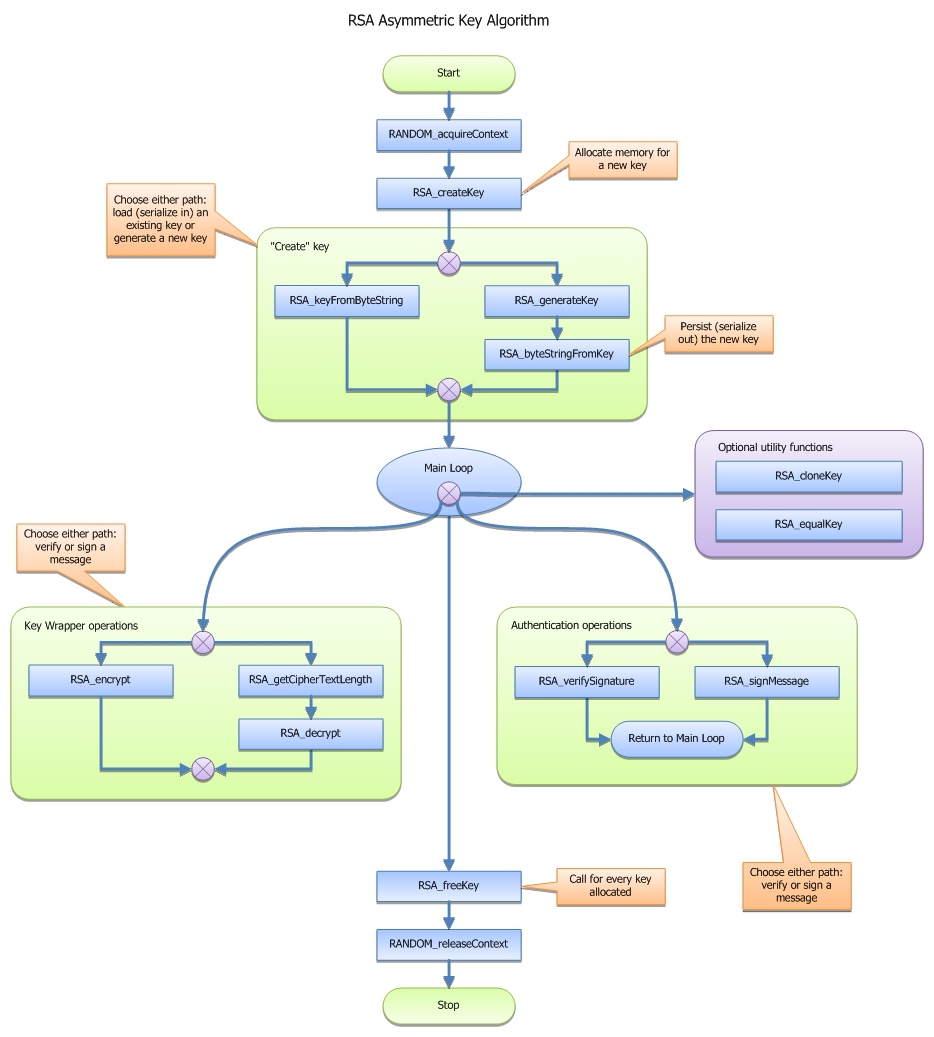

Flowchart	RSA

There are no flag dependencies to enable this function.

Warning: Before calling this function, be sure that the buffer pointed to by the pBuffer parameter is large enough; otherwise, buffer overflow will occur.

Parameters

[in]	hwAccelCtx	(Reserved for future use.)
[in]	pKey	Pointer to RSA key to convert.
[out]	pBuffer	Pointer to the address of a previously allocated buffer. On return, the buffer contains a byte-string representation of the RSA key. (The calling function must allocate sufficient memory for the resulting `key`. Otherwise, buffer overflow will occur.)
[out]	pRetLen	On input, pointer to the size of the `pBuffer` parameter. On return, pointer to number of bytes written to the `buffer` buffer.

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_cloneKey()

MOC_EXTERN MSTATUS RSA_cloneKey	(	MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey **	ppNew,
		const RSAKey *	pSrc,
		vlong **	ppVlongQueue
	)

This function clones (copies) an RSA key. To avoid memory leaks, your application should call RSA_freeKey() when it is done using the cloned key.

FIPS Approved
Suite B Algorithm
Flowchart	RSA

There are no flag dependencies to enable this function.

Parameters

[out]	ppNew	On return, pointer to address of cloned RSA key.
[in]	pSrc	Pointer to RSA key to clone.
[in,out]	ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_createKey()

MOC_EXTERN MSTATUS RSA_createKey ( RSAKey ** pp_RetRSAKey )

This function creates storage (allocates memory) for an RSA key pair. After the memory is allocated, applications can use the RSA_generateKey() function to generate the RSA key pair.

Note: This function does not generate actual RSA key values; to generate an RSA key pair, call the RSA_generateKey() function.

FIPS Approved
Suite B Algorithm
Flowchart	RSA

There are no flag dependencies to enable this function.

Parameters

[out] pp_RetRSAKey On return, pointer to address of allocated memory (for an RSA key).

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_decrypt()

MOC_EXTERN MSTATUS RSA_decrypt	(	MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey *	pKey,
		const ubyte *	cipherText,
		ubyte *	plainText,
		ubyte4 *	plainTextLen,
		RNGFun	rngFun,
		void *	rngFunArg,
		vlong **	ppVlongQueue
	)

This function decrypts a ciphertext buffer, using PKCS #1 and the provided RSA private key.

Note: This function uses a private key. To use a public key, call the RSA_verifySignature() function.

FIPS Approved
Suite B Algorithm
Flowchart	RSA

To enable this function, the following flag must #not# be defined:

$__DISABLE_MOCANA_RSA_DECRYPTION__$

Parameters

[in]	hwAccelCtx	(Reserved for future use.)
[in]	pKey	Pointer to RSA private key.
[in]	cipherText	Pointer to ciphertext to decrypt.
[out]	plainText	On return, pointer to decrypted plaintext. (The calling function must allocate sufficient memory for the resulting `plainText`; otherwise, buffer overflow will occur.)
[out]	plainTextLen	On return, pointer to number of bytes in the plaintext buffer (`plainText`).
[in]	rngFun	Pointer to a function that generates random numbers suitable for cryptographic use. To be FIPS-compliant, reference RANDOM_rngFun() (defined in random.c), and make sure that `__ENABLE_MOCANA_FIPS_MODULE__` is defined in moptions.h
[in]	rngFunArg	Pointer to arguments that are required by the function referenced in `rngFun`. If you use RANDOM_rngFun(), you must supply a `randomContext` structure, which you can create by calling RANDOM_acquireContext().
[out]	ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_encrypt()

MOC_EXTERN MSTATUS RSA_encrypt	(	MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey *	pKey,
		const ubyte *	plainText,
		ubyte4	plainTextLen,
		ubyte *	cipherText,
		RNGFun	rngFun,
		void *	rngFunArg,
		vlong **	ppVlongQueue
	)

This function encrypts a plaintext buffer, using PKCS #1 and the provided RSA public key.

Note: This function uses a public key. To use a private key, call the RSA_signMessage() function.

FIPS Approved
Suite B Algorithm
Flowchart	RSA

There are no flag dependencies to enable this function.

Warning: Before calling this function, be sure that the buffer pointed to by the cipherText parameter is large enough; otherwise, buffer overflow will occur. (To determine the ciphertext length, call the RSA_getCipherTextLength() function).

Parameters

[in]	hwAccelCtx	(Reserved for future use.)
[in]	pKey	Pointer to RSA public key.
[in]	plainText	Pointer to plaintext buffer to encrypt.
[in]	plainTextLen	Number of bytes in the plaintext buffer (`plainText`).
[out]	cipherText	On return, pointer to encrypted ciphertext. (The calling function must allocate sufficient memory for the resulting `cipherText`; otherwise, buffer overflow will occur.)
[in]	rngFun	Pointer to a function that generates random numbers suitable for cryptographic use. To be FIPS-compliant, reference RANDOM_rngFun() (defined in random.c), and make sure that `__ENABLE_MOCANA_FIPS_MODULE__` is defined in moptions.h
[in]	rngFunArg	Pointer to arguments that are required by the function referenced in `rngFun`. If you use RANDOM_rngFun(), you must supply a `randomContext` structure, which you can create by calling RANDOM_acquireContext().
[out]	ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_equalKey()

MOC_EXTERN MSTATUS RSA_equalKey	(	MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey *	pKey1,
		const RSAKey *	pKey2,
		byteBoolean *	pResult
	)

This function determines whether two RSA keys are equal, and returns the result through the pResult parameter.

FIPS Approved
Suite B Algorithm
Flowchart	RSA

There are no flag dependencies to enable this function.

Parameters

[in]	pKey1	Pointer to first RSA key.
[in]	pKey2	Pointer to second RSA key.
[out]	pResult	On return, pointer to `TRUE` if the two keys are equal; otherwise pointer to `FALSE`.

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_freeKey()

MOC_EXTERN MSTATUS RSA_freeKey	(	RSAKey **	ppFreeRSAKey,
		vlong **	ppVlongQueue
	)

This function frees (deletes) an RSA key. To avoid memory leaks, applications should call this function when an allocated RSA key is no longer needed.

FIPS Approved
Suite B Algorithm
Flowchart	RSA

There are no flag dependencies to enable this function.

Parameters

[in,out]	ppFreeRSAKey	Pointer to address of RSA key to free (delete).
[in,out]	ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_freeKeyTemplate()

MOC_EXTERN MSTATUS RSA_freeKeyTemplate	(	RSAKey *	pKey,
		MRsaKeyTemplatePtr	pTemplate
	)

Parameters

[in]	pKey	Pointer to the original key the data was retrieved from.
[in,out]	pTemplate	Pointer to the RSA standard key template structure.

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_generateKey()

MOC_EXTERN MSTATUS RSA_generateKey	(	MOC_RSA(hwAccelDescr hwAccelCtx) randomContext *	pRandomContext,
		RSAKey *	p_rsaKey,
		ubyte4	keySize,
		vlong **	ppVlongQueue
	)

This function generates an RSA key pair (private and public keys). Typically, your application calls this function after calling the RSA_createKey() function.

FIPS Approved
Suite B Algorithm
Flowchart	RSA

There are no flag dependencies to enable this function.

Parameters

[in]	hwAccelCtx	(Reserved for future use.)
[in]	pRandomContext	Pointer to RNG context.
[in,out]	p_rsaKey	Pointer to RSA key memory, previously allocated by calling RSA_createKey().
[in]	keySize	Number of bits for generated RSA key; for example, 1024). (For details, refer to the appropriate FIPS Publication, accessible from the following Web page: http://www.nist.gov/itl/fips.cfm.)
[out]	ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_getCipherTextLength()

MOC_EXTERN MSTATUS RSA_getCipherTextLength	(	MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey *	pKey,
		sbyte4 *	pCipherTextLen
	)

This function gets an RSA public key's ciphertext length, and returns it through the cipherTextLen parameter.

FIPS Approved
Suite B Algorithm
Flowchart	RSA

There are no flag dependencies to enable this function.

Parameters

pKey	Pointer to RSA public key.
pCipherTextLen	On return, pointer to number of bytes in key's ciphertext.

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_getKeyParametersAlloc()

MOC_EXTERN MSTATUS RSA_getKeyParametersAlloc	(	MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey *	pKey,
		MRsaKeyTemplatePtr	pTemplate,
		ubyte	keyType
	)

Public Exponent (E)
Modulus (N)
Components of N (For private keys):
- Prime P
- Prime Q

This function allocates the buffers onto the heap, therefore a call to the free function RSA_freeKeyTemplate is required in order to properly free these buffers.

Parameters

[in]	pKey	Pointer to an RSA key.
[in,out]	pTemplate	Pointer to the RSA standard key template structure.
[in]	keyType	Instructs the function whether to return public or private key data. Value may either be MOC_GET_PUBLIC_KEY_DATA or MOC_GET_PRIVATE_KEY_DATA

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_keyFromByteString()

MOC_EXTERN MSTATUS RSA_keyFromByteString	(	MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey **	ppKey,
		const ubyte *	byteString,
		ubyte4	len,
		vlong **	ppVlongQueue
	)

This function converts a byte string to an RSA key, using PKCS #1, and returns the resultant RSA key through the ppKey parameter.

FIPS Approved
Suite B Algorithm
Flowchart	RSA

There are no flag dependencies to enable this function.

Note: To avoid memory leaks, be sure to free the resultant RSA key by calling RSA_freeKey().

Parameters

[out]	ppKey	On return, pointer to address of new RSA key.
[in]	byteString	Pointer to buffer containing RSA key as a string of PKCS #1 bytes.
[in]	len	Number of bytes in RSA key buffer (`byteString`).
[out]	ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_prepareKey()

MOC_EXTERN MSTATUS RSA_prepareKey	(	MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey *	pRSAKey,
		vlong **	ppVlongQueue
	)

This function computes an RSA private key.

FIPS Approved
Suite B Algorithm
Flowchart	RSA

There are no flag dependencies to enable this function.

Parameters

[in]	hwAccelCtx	(Reserved for future use.)
[out]	pRSAKey	On return, pointer to RSA private key. that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)
[out]	ppVlongQueue	On return, pointer to location in the `vlong` queue

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_setAllKeyData()

MOC_EXTERN MSTATUS RSA_setAllKeyData	(	MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey *	pKey,
		ubyte *	pPubExpo,
		ubyte4	pubExpoLen,
		const ubyte *	pModulus,
		ubyte4	modulusLen,
		const ubyte *	pPrime1,
		ubyte4	prime1Len,
		const ubyte *	pPrime2,
		ubyte4	prime2Len,
		vlong **	ppVlongQueue
	)

Parameters

[in,out]	pKey	Pointer to RSA public key.
[in]	pPubExpo	RSA public key exponent. (For details, refer to the appropriate FIPS Publication, accessible from the following Web page: http://www.nist.gov/itl/fips.cfm.)
[in]	pubExpoLen	Number of bytes in `pPubExpo`.
[in]	pModulus	Pointer to buffer containing the desired modulus, represented as a buffer of bytes in big endian format.
[in]	modulusLen	Number of bytes in `pModulus`.
[in]	pPrime1	Pointer to buffer containing first prime number for RSA key calculation.
[in]	prime1Len	Number of bytes in the first prime number buffer (`prime1`).
[in]	pPrime2	Pointer to buffer containing second prime number for RSA key calculation.
[in]	prime2Len	Number of bytes in the second prime number buffer (`prime2`).
[in,out]	ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_setAllKeyParameters()

MOC_EXTERN MSTATUS RSA_setAllKeyParameters	(	MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey *	pKey,
		ubyte4	exponent,
		const ubyte *	modulus,
		ubyte4	modulusLen,
		const ubyte *	prime1,
		ubyte4	prime1Len,
		const ubyte *	prime2,
		ubyte4	prime2Len,
		vlong **	ppVlongQueue
	)

This function sets an RSA public key's parameters. The modulus is a string of bytes in big endian format.

FIPS Approved
Suite B Algorithm
Flowchart	RSA

There are no flag dependencies to enable the functions in this header file.

Parameters

[in]	hwAccelCtx	(Reserved for future use.)
[in,out]	pKey	Pointer to RSA public key.
[in]	exponent	RSA public key exponent.
[in]	modulus	Pointer to buffer containing modulus, represented as a buffer of bytes in big endian format.
[in]	modulusLen	Number of bytes in `modulus`.
[in]	prime1	Pointer to buffer containing first prime number for RSA key calculation.
[in]	prime1Len	Number of bytes in the first prime number buffer (`prime1`).
[in]	prime2	Pointer to buffer containing second prime number for RSA key calculation.
[in]	prime2Len	Number of bytes in the second prime number buffer (`prime2`).
[out]	ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_setPublicKeyData()

MOC_EXTERN MSTATUS RSA_setPublicKeyData	(	MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey *	pKey,
		ubyte *	pPubExpo,
		ubyte4	pubExpoLen,
		const ubyte *	pModulus,
		ubyte4	modulusLen,
		vlong **	ppVlongQueue
	)

Parameters

[in,out]	pKey	Pointer to RSA public key.
[in]	pPubExpo	RSA public key exponent. (For details, refer to the appropriate FIPS Publication, accessible from the following Web page: http://www.nist.gov/itl/fips.cfm.)
[in]	pubExpoLen	Number of bytes in `pPubExpo`.
[in]	pModulus	Pointer to buffer containing the desired modulus, represented as a buffer of bytes in big endian format.
[in]	modulusLen	Number of bytes in `pModulus`.
[in,out]	ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_setPublicKeyParameters()

MOC_EXTERN MSTATUS RSA_setPublicKeyParameters	(	MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey *	pKey,
		ubyte4	exponent,
		const ubyte *	modulus,
		ubyte4	modulusLen,
		vlong **	ppVlongQueue
	)

This function sets an RSA public key's exponent and modulus parameters. The modulus is a string of bytes in big endian format.

FIPS Approved
Suite B Algorithm
Flowchart	RSA

There are no flag dependencies to enable this function.

Parameters

[in,out]	pKey	Pointer to RSA public key.
[in]	exponent	RSA public key exponent. (For details, refer to the appropriate FIPS Publication, accessible from the following Web page: http://www.nist.gov/itl/fips.cfm.)
[in]	modulus	Pointer to buffer containing the desired modulus, represented as a buffer of bytes in big endian format.
[in]	modulusLen	Number of bytes in `modulus`.
[in,out]	ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_signMessage()

MOC_EXTERN MSTATUS RSA_signMessage	(	MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey *	pKey,
		const ubyte *	plainText,
		ubyte4	plainTextLen,
		ubyte *	cipherText,
		vlong **	ppVlongQueue
	)

This function generates a signature for a plaintext buffer, using the provided RSA private key and PKCS #1 (essentially encrypting the plaintext).

FIPS Approved
Suite B Algorithm
Flowchart	RSA

Note: This function uses a private key. To use a public key, call the RSA_encrypt() function.

There are no flag dependencies to enable this function.

Parameters

[in]	hwAccelCtx	(Reserved for future use.)
[in]	pKey	Pointer to RSA private key.
[in]	plainText	Pointer to plaintext buffer to encrypt.
[in]	plainTextLen	Number of bytes in the plaintext buffer (`plainText`).
[out]	cipherText	On return, pointer to encrypted ciphertext containing the signature. (The calling function must allocate sufficient memory for the resulting `cipherText`; otherwise, buffer overflow will occur.)
[out]	ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

◆ RSA_verifyDigest()

MOC_EXTERN MSTATUS RSA_verifyDigest	(	MOC_RSA(hwAccelDescr hwAccelCtx) RSAKey *	pKey,
		ubyte *	pMsgDigest,
		ubyte4	digestLen,
		ubyte *	pSignature,
		ubyte4	sigLen,
		intBoolean *	pIsValid,
		vlong **	ppVlongQueue
	)

This function verifies the digest of a message, using the provided RSA public key.

There are no flag dependencies to enable this function.

Parameters

[in]	hwAccelCtx	(Reserved for future use.)
[in]	pKey	Pointer to RSA public key.
[in]	pMsgDigest	Pointer to Msg Digest to be verified.
[in]	digestLen	The length of the message digest in bytes.
[in]	pSignature	Pointer to the signature to be verified.
[in]	sigLen	The length of the signature in bytes.
[out]	pIsValid	Contents will be set with `TRUE` if the signature is valid and `FALSE` if otherwise.
[out]	ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

Warning: Be sure to check for both a return status of OK and a pIsValid of TRUE before accepting that a signature is valid.

◆ RSA_verifySignature()

MOC_EXTERN MSTATUS RSA_verifySignature	(	MOC_RSA(hwAccelDescr hwAccelCtx) const RSAKey *	pKey,
		const ubyte *	cipherText,
		ubyte *	plainText,
		ubyte4 *	plainTextLen,
		vlong **	ppVlongQueue
	)

This function verifies the signature of a PKCS #1-encrypted data buffer, using the provided RSA public key (essentially decrypting the ciphertext).

Note: This function uses a public key. To use a private key, call the RSA_decrypt() function.

FIPS Approved
Suite B Algorithm
Flowchart	RSA

There are no flag dependencies to enable this function.

Parameters

[in]	hwAccelCtx	(Reserved for future use.)
[in]	pKey	Pointer to RSA public key.
[in]	cipherText	Pointer to ciphertext to decrypt.
[out]	plainText	On return, pointer to decrypted plaintext. (The calling function must allocate sufficient memory for the resulting `plainText`; otherwise, buffer overflow will occur.)
[out]	plainTextLen	On return, pointer to number of bytes in the plaintext buffer (`plainText`).
[out]	ppVlongQueue	On return, pointer to location in the `vlong` queue that contains this function's intermediate value, which can subsequently be used and eventually discarded. (Before ending, your application should be sure to free the entire queue.)

Returns: OK (0) if successful; otherwise a negative number error code definition from merrors.h. To retrieve a string containing an English text error identifier corresponding to the function's returned error status, use the DISPLAY_ERROR macro.

Typedefs

Functions

Detailed Description

Function Documentation

◆ RSA_applyPrivateKey()

◆ RSA_applyPublicKey()

◆ RSA_byteStringFromKey()

◆ RSA_cloneKey()

◆ RSA_createKey()

◆ RSA_decrypt()

◆ RSA_encrypt()

◆ RSA_equalKey()

◆ RSA_freeKey()

◆ RSA_freeKeyTemplate()

◆ RSA_generateKey()

◆ RSA_getCipherTextLength()

◆ RSA_getKeyParametersAlloc()

◆ RSA_keyFromByteString()

◆ RSA_prepareKey()

◆ RSA_setAllKeyData()

◆ RSA_setAllKeyParameters()

◆ RSA_setPublicKeyData()

◆ RSA_setPublicKeyParameters()

◆ RSA_signMessage()

◆ RSA_verifyDigest()

◆ RSA_verifySignature()
