User-mode IPsec

2 minute read

This section outlines the setup and management of IPsec in user mode, including source files, build instructions, and execution steps.

Source

For user-mode IPsec, under mss/src/examples:

ipsec/linux/missiu/*
ipsec_loadconfig/loadConfig_missiu.c
ipseckey_example_missiu.c

Build

To build IPsec user mode:

Modify pre-defined compile flags in make/Makefile.linux.ipsec as needed
```
make -f make/Makefile.linux.ipsec missiu
```

Note: Executables missiu, ike and loadConfig are generated under ./bin folder.

Run

To run IPsec user mode:

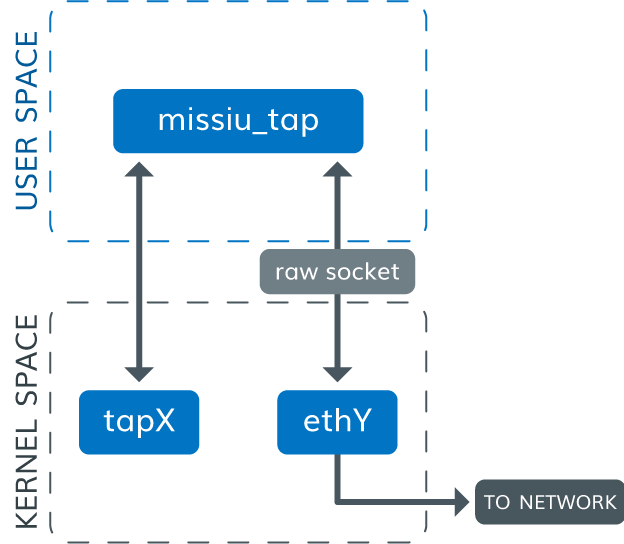

Start missiu to intercept packets in the data path:

cd bin
./missiu -i <interface> [-l <log_file>] startRaw
# packets are intercepted on the <interface> and the <log_file> is created in the /var/run/ folder.

New TAP device (e.g., tap0), is allocated, but may need to be brought up manually:
```
ip link set dev tap0 up
```
Start IKE
```
./ike [-h] <local_ip_addr> &
```
Configure
```
./loadConfig -f <config_file>
```

Add a route to redirect outbound traffic to the TAP device.

For example, if the <config_file> contains:

{ raddr 192.168.3.119 ulp icmp } ipsec { encr_algs aes encr_auth_algs sha1 }

Add a the following route:
```
route add -host 192.168.3.119 dev tap0
```

Stop

To stop the process:

Stop ike process:
```
killall ike
```
Stop missiu from intercepting packets:
```
./missiu -i <interface> stop
```

Additional information

In NanoSec, IKE to IPsec communications may be performed using the following:

IOCTL (e.g. I/O Request Packet (IRP) to driver)
PF_KEY (socket based)
Direct APIs provided by IPsec

In the data path, packets may be processed as follows:

User space service may use shared memory and IOCTL based events to receive/transit packets from a network driver (e.g. NDIS intermediate driver).
User space process (in the forwarding plane) may call IPSEC_apply for outbound packets, IPSEC_permit for inbound packets. In addition, IPSEC_fragRcv() reassembles fragmented packets.
